Transmission Electron Microscope

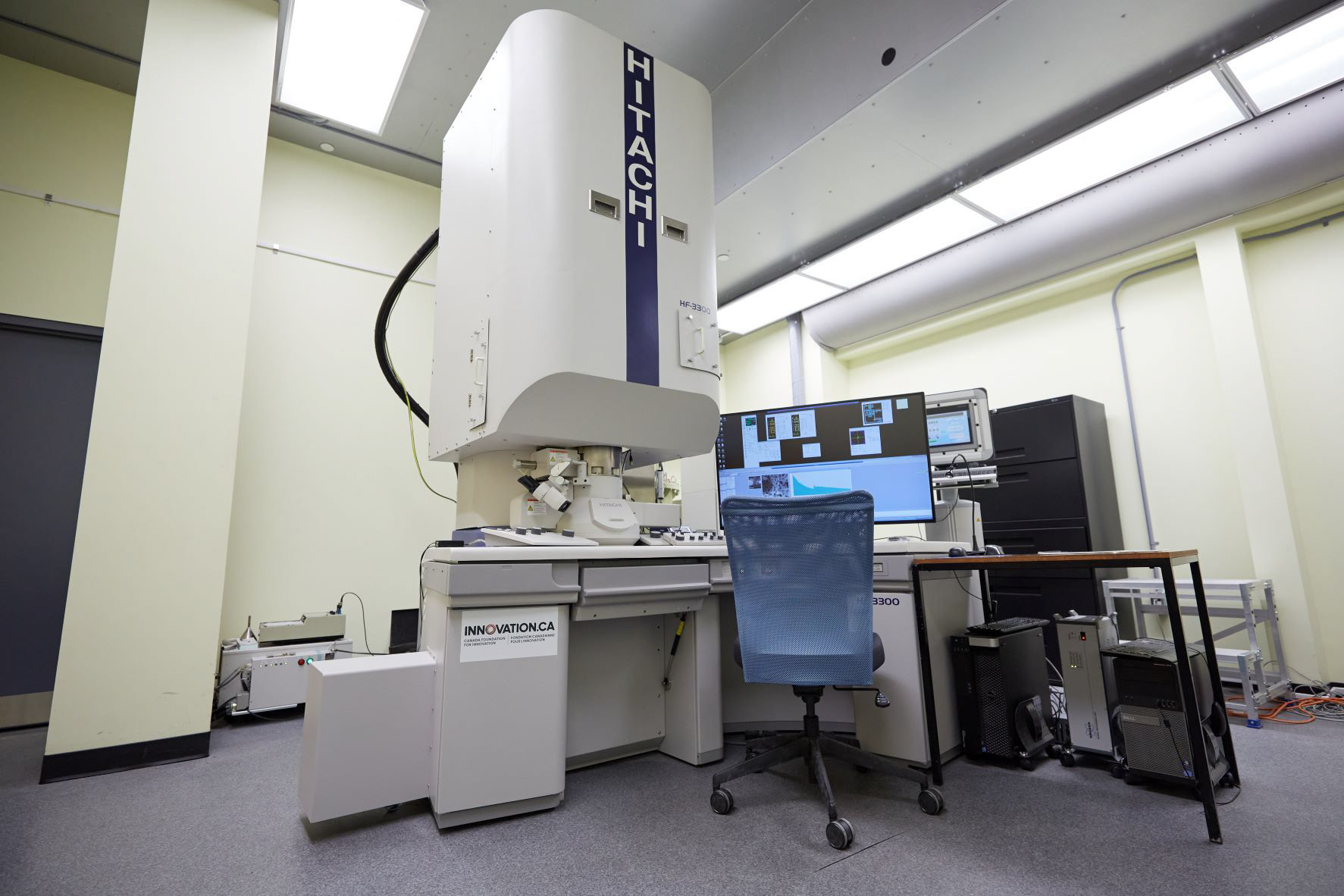

Hitachi HF3300 Environmental Transmission Electron Microscope
Structural, compositional, and chemical info at (sub)nm scale
Key Functionalities
•Structural, compositional, and chemical information at (sub)nm scale
•TEM/STEM observation
•Elemental compositional analysis via EDX
•Chemical characterization and mapping via spatially-resolved EELS
•Nano diffraction
•Environmental perturbation for e.g. dynamic in-situ characterization
Key Configuration Parameters
•Cold-field emission, 100/200/300kV accelerating voltage
•STEM unit (brightfield/darkfield)
•Oxford Aztec Energy dispersive Xray spectrometer (EDX)
•Gatan Orius SC200 digital micrograph system
•Gatan 963 GIF Quantum SE imaging filter
