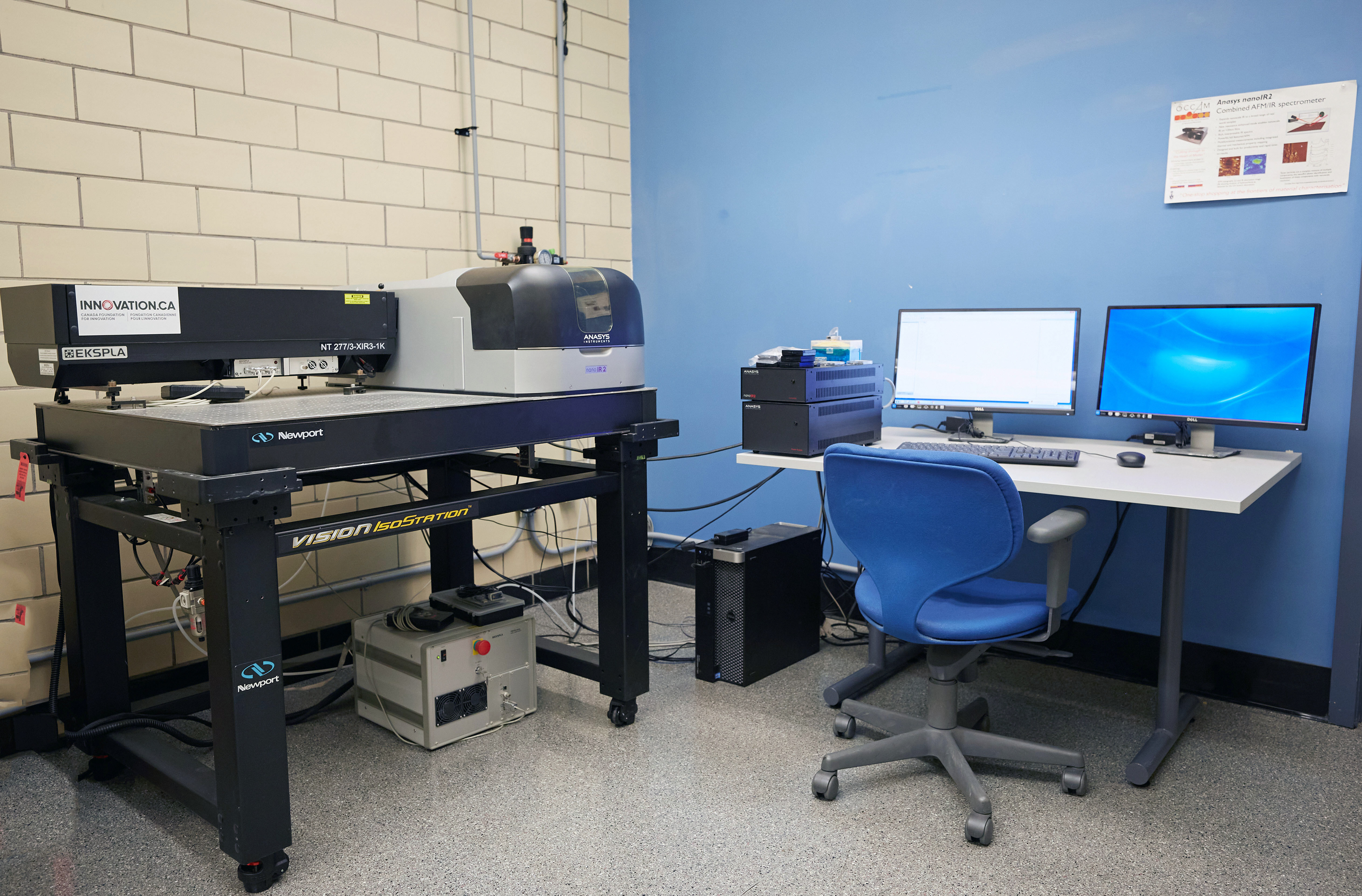

PhotoThermal Infrared Atomic Force Microscope
Anasys Instruments (now Bruker) nanoIR2
Key Functionalities
•Multi-functional AFM system capable of e.g. contact mode, phase imaging, tapping mode, force curves, lateral force mode, force modulation characterization, and others

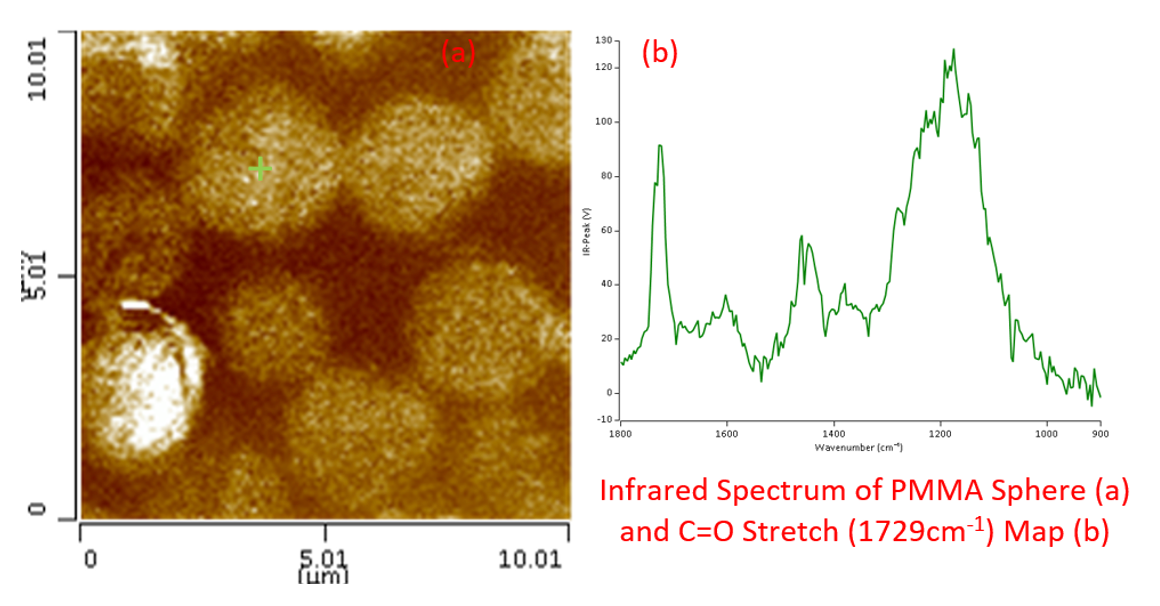

•Small spot infrared spectroscopy, and high-spatial resolution IR imaging; 100nm resolution for many samples
Important Configuration Parameters
•Integrated infrared laser for photothermal infrared spectroscopy
•Infrared spectra analogous to FTIR data
•900-2000/2235-3600 cm-1 range
•80um x 80um XY scan range; >6um Z scan range
