Micro-Hardness Tester

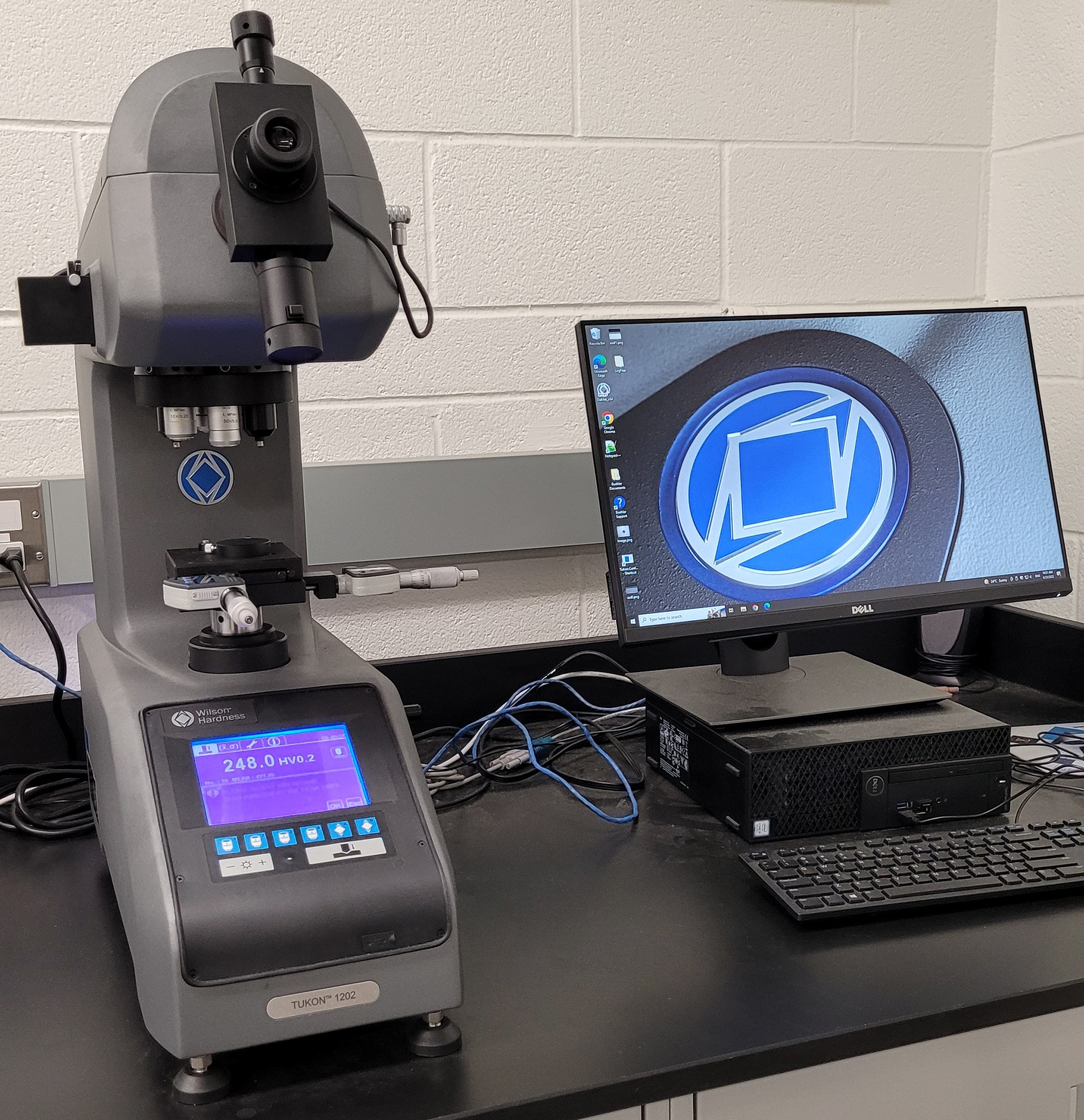

Wilson Tukon 1202 Micro-Hardness Tester
Key Functionalities
•Application of small loads (c.f. macro-hardness testing) and characterization at smaller spatial scales than Rockwell hardness testing
•Ideally suited to hardness testing of small samples, thin specimen, thin films, plated samples, non-homogeneous samples, samples with small-scale structure, or samples of unusual shape
Important Configuration Parameters
•Capability to do both Vickers and Knoop testing
•Six position turret with two indenter positions and 5x, 10x, and 50x long working distance objectives
•8 selectable test forces, ranging from 10g-1000g
•PC-interfaced with DiaMet software
